Engineered for groundwater supply, pressure boosting, and liquid transfer in industrial, agricultural, and domestic applications.

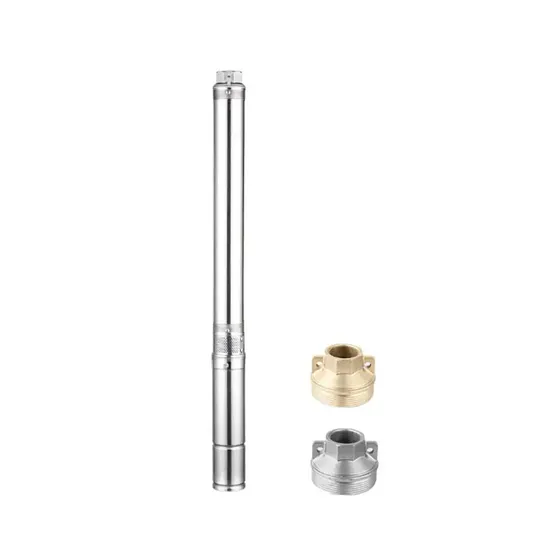

Constructed with a stainless steel AISI 201 external case and optional brass or cast iron discharge head for enhanced durability and corrosion resistance.
Features high-strength plastic PC diffusers and POM impellers, optimized for pumping clean liquids without abrasive particles.
Designed for a wide range of applications including groundwater extraction, waterworks, irrigation systems, and pressure boosting.
Offers a broad operational range with power from 0.18 kW to 7.5 kW, catering to diverse flow rate and head requirements.
Equipped with a high-quality oil chamber and a robust stainless steel AISI 304 pump shaft for long-term reliability and performance.
Available with a start control box for single-phase models and an optional automatic control box for three-phase pumps for operational safety.
Model Series: SDM
Power Range: 0.18 kW - 7.5 kW
Max Head: 110m - 150m
Max Capacity: 200-300 L/min (12 m³/h - 18 m³/h)
Outlet Diameter: 1/2", 1", 1 1/4", 1 1/2", 2"
Component Materials: Stainless Steel (AISI 201/304), Brass, Cast Iron, Plastic (PC/POM)
